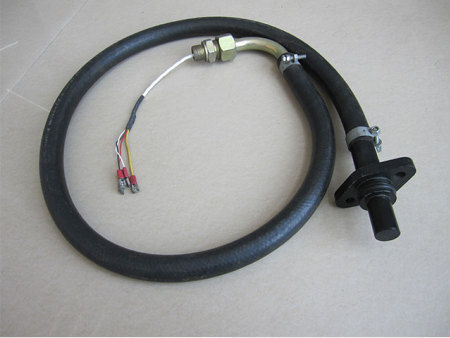

Zs-8 automobile speed sensor

Zs-8 automobile speed sensor is a dual channel (Hall gear) automobile speed sensor developed by our company, which can completely replace imported products. It is used to detect the speed, linear speed and acceleration of axle. The two channels of the sensor are isolated from each other and the output is square wave. It has no contact with the measured gear, no wear and convenient installation. It has polarity and short-circuit protection functions, wide speed measurement range, wide temperature adaptation range and strong seismic resistance. At the same time, it can be widely used in the new generation of automobile intelligent engine as the speed sensor for ignition timing and ABS (automobile anti lock braking system) as the speed sensor.

Technical indicators:

1. Frequency response range: 0-20khz

2. Gear parameters: modulus ≥ 1.5, and the material is conductive magnet material

3. Installation clearance: 0.5-2.0mm, typical value is 1.0mm

4. Number of output channels: Dual Channels

5. Output waveform: square wave

6. Output amplitude: high level: UB - (1.6V ± 30%), low level: ＜ 2V ± 30%

7. Pulse duty cycle: 50% ± 25%

8. Phase difference: 90 ± 30 °

9. Applicable temperature range: - 20 ~ + 120 ° C

10. Temperature resistance of output cable: - 40 ~ 200 ° C

11. Power supply voltage: (5 ~ 28) VDC, 15Vdc ± 30% is recommended

12. The overall dimensions are available in various shapes, such as universal thread installation type, aviation plug straight through, aviation plug bending, etc.

13. It can replace the speed sensors of German deata, Swiss jaquet, American Bombardier and other series models.
