Zs-6 gear speed sensor

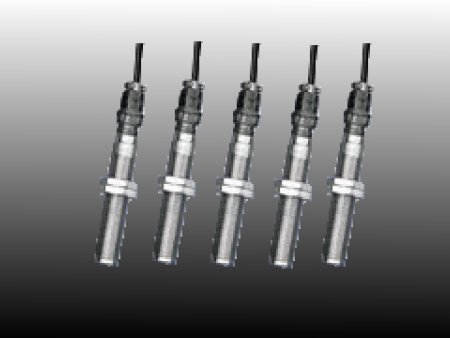

Zs-6 series gear speed sensor

Zs-6 series gear speed sensor adopts Hall sensing element and is triggered by steel magnet. It has the characteristics of wide frequency response, good stability and strong anti-interference ability. It has amplification and shaping circuit and outputs square wave with stable amplitude. It can realize long-distance transmission and can be used to measure speed, angular displacement, etc. Zs-6-01 / 02 is a single channel / double channel speed sensor, equipped with keyway or gear, which can output two channels of square wave signals with stable amplitude with phase difference. It not only has ordinary direction judgment function, but also can separate the movement direction of gear and rack.

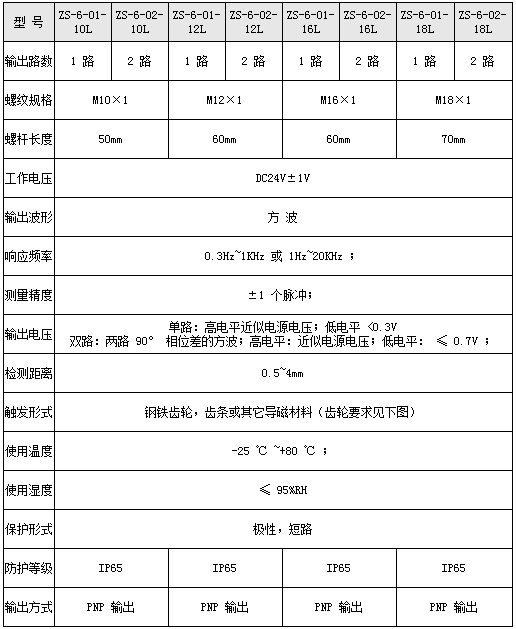

Order guide

Order code: zs-06-a □□ - B □□□

Sensor length: a □□

0 1：65mm

0 2：117mm

0 3：148mm

Thread: B □□

0 1：M10 × one

0 2：M12 × one

0 3：M16 × one

0 4：M18 × one
