Yn-do axial displacement sensor

Yn-do series axial displacement sensor

Axial sensor is a non-contact linearization measuring tool. It has the advantages of good long-term working reliability, wide measurement range, high sensitivity, high resolution, fast response speed, strong anti-interference and free from the influence of oil and other media. Therefore, it is widely used in power, petroleum, chemical industry, metallurgy and other industries Dynamic and static non-contact displacement measurement of large rotating machinery such as large cooling pump.

For example, radial and axial shaft displacement, differential expansion, shaft eccentricity, shaft vibration, Keyphasor and rotational speed. In order to meet the needs of various measurement schemes, we provide eddy current sensors of various specifications, which can be divided into yn-do according to the probe specification (diameter) Φ 8ｍｍ、YN-DO Φ 11ｍｍ、YN-DO Φ There are three specifications of 25mm, which can be divided into 5M and 9m according to the total length of system cable (probe cable length + extension cable length).

YH DOA intrinsically safe eddy current sensor can be used in inflammable, explosive and other dangerous places. When used, it is used together with Zener safety barrier of related equipment.

form

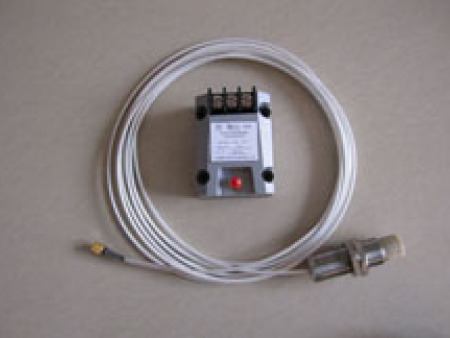

Yn-do series axial position sensor consists of yn-do probe, yn-do extension cable and ynqz proximitor.

Yn-do series probe

The probe is composed of inductance, protective cover, stainless steel shell, high-frequency cable, high-frequency connector, etc. different diameter specifications can be selected according to different measurement ranges (such as: Φ 8ｍｍ、 Φ 11ｍｍ、 Φ 25mm) probe; According to different installation requirements, probes with different installation methods (such as front installation, reverse installation and no thread) and 1m or 0.5m cable length can be selected.

Yn-do series extension cable

SMA self-locking plugs are installed at both ends of the extension cable, and one end is equipped with an oil-proof protective sleeve, which is specially used to protect the self-locking plug from oil medium pollution, so as to improve the reliability of the system. The extension cable length can be divided into four types: 4m, 4.5m, 8m and 8.5m.

Ynqz series proximitor

Proximitor is the core part of the system. It includes oscillation, linear detection, filtering, linear compensation, amplification and other circuits of the whole sensor system. Together with extension cable and probe, it forms yh-do eddy current sensors of various specifications. According to the diameter specification of the matched probe, yh-do proximitor is divided into Φ 8ｍｍ、 Φ 11ｍｍ、 Φ There are three specifications of 25mm. According to the total length of system cable (probe cable length + extension cable length), each specification is divided into two types: 5M and 9m.

The transmitter is used together with eddy current sensor. It is mainly used to measure the axial displacement, differential expansion or shaft vibration and coating thickness of rotating machinery. It has small volume and convenient installation. It can be connected with computer, PLC, DCS and other equipment.

2. Technical parameters

● input signal: eddy current sensor output

● output signal: 4 ~ 20mA or 0-24v (can be designed according to user's needs)

● measuring range: 0 ~ 10mm

● degree: ± 1%

● working voltage: DC24V, - 24V power supply (can be designed arbitrarily according to user's needs)

● operating temperature: - 30 ~ + 50 ℃

● proximitor structure:

A is the standard rail mounted electrical box, overall dimension: 70.5 × seventy-five × 110mm

B is the screw mounting housing, overall dimension: 80 × 60mm, installation size: 51 × 51mm

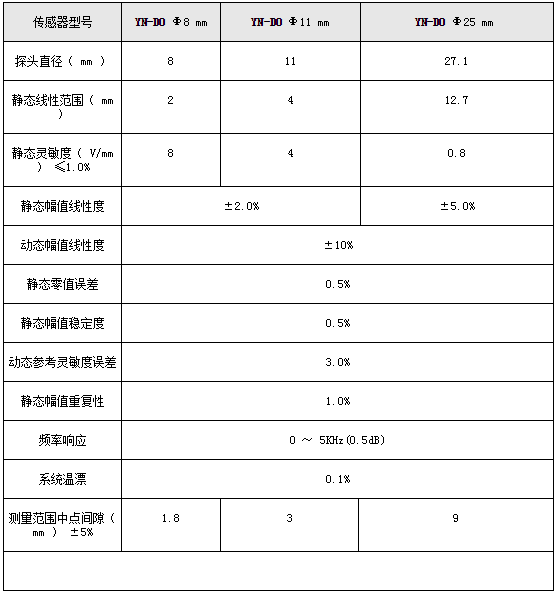

Main technical parameters of ynqz series eddy current sensor:

Shopping guide:

Purchase code yn-do-a □□□ - B □□ - C □□ - D □□

Probe diameter a □: 005（ Ф 5mm sensor) 008（ Ф 8mm sensor) 011*（ Ф 11mm (sensor)

018（ Ф 18mm sensor) 025（ Ф 8mm sensor) 050（ Ф 50mm sensor) 108（ Ф 8mm (with rod sensor)

Spiral pipe length B □□: 01-40mm; 02*——60mm；  03 - 80mm (or user defined)

Cable length C □□: 01 * - 5m; 02——8m

Cable armor D □□: 01 - with armor; 02 * - without armor

No special circumstances: the manufacturer produces according to item *; If there are special requirements, please consult with our company;

Proximitors of various specifications can be designed and manufactured according to user needs
