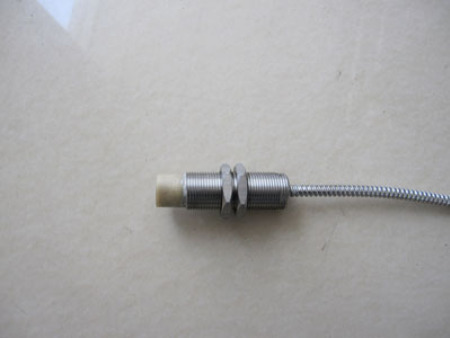

Yh-do-1 integrated eddy current sensor

Integrated eddy current sensor model: yh-do-1

·The eddy current sensor adopts patch technology to miniaturize and integrate the eddy current probe, cable and proximitor, and is encapsulated in the standard M18（ Φ 8) or（ Φ 11) probe body with thread.

·Since all components of the eddy current measurement circuit are installed in the sensor probe, there is no need for high-frequency coaxial cable and high-frequency probe, and the signal output line can be more than 100 meters, which improves the reliability of the system.

·The installation is convenient and the installation cost of the sensor is reduced.

Purpose:

The integrated eddy current sensor is mainly used to monitor the displacement, vibration, speed and other parameters of rotating machinery, and the corresponding linear signal output.

Product Description:

working principle:

Yh-do-1 integrated eddy current sensor adopts patch technology, which integrates the eddy current probe, cable and proximitor, and is encapsulated in the standard M18（ Φ 8 probe or Φ 11 probe and Φ 16) Threaded probe body. Since all components of the eddy current measurement circuit are encapsulated in the sensor probe, there is no need for high-frequency coaxial cable and high-frequency probe, which improves the reliability of the system. At the same time, the installation cost of the sensor is also reduced.

Purpose:

Yh-do-1 integrated eddy current sensor is mainly used to monitor the displacement, vibration, speed and other parameters of rotating machinery, and directly output linear standard signals.

Technical indexes of integrated eddy current sensor:

■ power supply: ± 24VDC

■ operating frequency range: 0 ~ 6KHz

■ displacement measurement range: 2mm or 4mm

■ output 4 ~ 20mA

■ error range: ≤ 1.0%

■ working temperature: - 20 ℃ ~ 80 ℃

■ sensitivity: 8V / mm, 8Ma / mm, 4V / mm, 4mA / mm

■ ripple: ≤ 20mV

■ resolution: 0.1 μ m

■ temperature drift: 0.5 ‰
