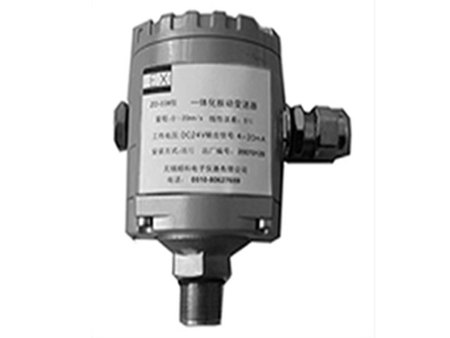

Zd-03 integrated explosion-proof vibration transmitter

Zd-03 integrated explosion-proof vibration transmitter

Zd-03 series explosion-proof vibration transmitter is equipped with yz-6 series magnetoelectric speed sensor, which can monitor the effective value of bearing bush speed or peak value of vibration displacement and vibration intensity of rotating machinery.

Zd-03 series vibration transmitter

1、 Overview:

Zd-03 series vibration transmitter is a fixed on-line vibration measuring device, which is mainly used to measure the vibration velocity value. The output form is 4mA ~ 20mA standard current, which is directly proportional to the vibration value. It can be directly input into PLC / DCS to form a system that can monitor and protect equipment such as centrifugal pump, reciprocating compressor, centrifuge, cooling tower, industrial fan, motor and gas turbine. The device adopts the design of sensor and instrument body. The cast aluminum shell and stainless steel components can be waterproof and dustproof, and meet the requirements of industrial site installation and use. The device has passed the explosion-proof safety supervision and inspection station of instruments and meters (nepsi) review shows that the explosion-proof safety performance meets the relevant requirements specified in gb3836.1-2000 and gb3836.4-2000 standards. The device forms an intrinsically safe explosion-proof system matched with the isolated safety barrier, and can be used in the site with explosive gas mixture below class IIC. The applicable occasions can be applied to such as centrifugal pump, reciprocating compressor, centrifuge, cooling tower, industrial fan and electric motor Monitor and protect the turbine, gas turbine and other equipment.

2、 Technical parameters

● range

Vibration amplitude: * 0 ~ 200um; 0 ~ 500um; 0 ~ 1000um

Vibration intensity: 0 ～ 10.0mm/s; * 0 ～ 20.0mm/s; 0 ～ 50.0mm/s

1. Frequency response: 5 ~ 500 Hz

2. Natural frequency: 10Hz

3. Output current: 4 ~ 20mA

4. Output impedance: ≤ 500 Ω

5. Working voltage: DC24V

6. Connection mode: two wire system (DC24V power supply and 4 ~ 20mA share two wires) or three wire system (ground, power supply and output)

7. Acceleration: 10g

8. Measurement direction: vertical or horizontal

9. Operating environment: temperature - 40 ℃ ~ 85 ℃, relative humidity ≤ 90%

10. Overall dimensions: φ 72mm × 125mm（mm）

11. Weight: About 450g

12. Mounting thread: M16 × one point five

3、 Installation

1 installation position: vertically or horizontally installed on the measured vibration point, M16 at the bottom of the transmitter × one point five × 20 threaded fixing.

4、 Selection Guide

（1） ZD-3-A□

Range: a □: 1-0 ~ 200um; 2-0 ~ 500um; 3-0 ~ 1000um (vibration amplitude)

（2） ZD-3L-A□

Range: 1-0 ～ 10.0mm/s; 2-0 ～ 20.0mm/s; 3-0 ～ 50.0mm/s (vibration intensity)
