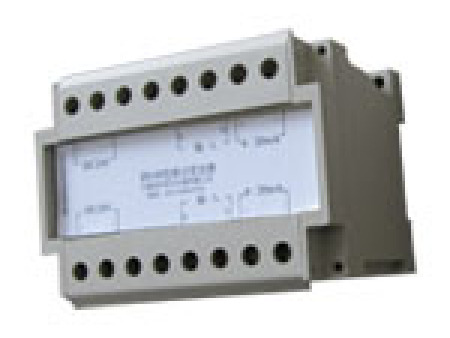

Zd-02 vibration intensity transmitter

A

Zd-01 series vibration transmitter

B

Zd-02 series vibration intensity transmitter

Zd-01 series vibration transmitter is equipped with yz-6 series magnetoelectric speed sensor, which can monitor the effective value of bearing bush speed or peak value of vibration displacement of rotating machinery.

technical parameter

■ range: 0 ~ 500 μ M or any range within 0 ~ 50mm / S;

■ frequency? Sound: 10 ~ 500Hz;

■ current output: 4 ~ 20mA or 0 ~ 10mA, accuracy: ± 1% of full scale,

Load 500 Ω;

■ buffered output: sensor original signal output;

■ report? Alarm: set at any point within the full range, LED alarm indication, relay

Switching value contact output, capacity dc28v / 2A or AC250V / 1A;

■ power supply: + 24VDC ± 10% or 220VAC ± 10%, 50Hz, power consumption less than 6W.
