Zdi-01 shaft vibration transmitter

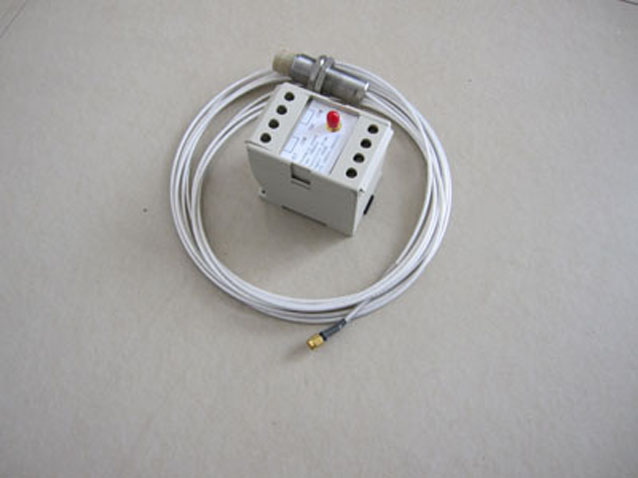

Zdi-01 series shaft vibration transmitter is equipped with yh-do eddy current sensor, which is mainly used to continuously monitor and measure the radial vibration peaks and peaks of the shaft of rotating machinery. There are two types of transmitters:

Integrated: the proximitor and signal processing unit of eddy current sensor are integrated in the transmitter, as long as the eddy current sensor is configured φ 8mm probe, extension cable system.

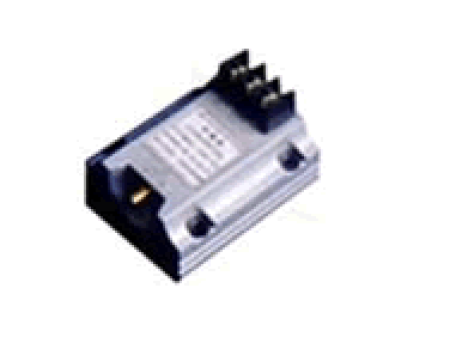

Split type: to be connected φ 8mm eddy current sensor system (including proximitor, extension cable and probe)

technical parameter

■ measurement range: 0 ~ 500 μ Any range within m;

■ frequency response: 1 ~ 200Hz;

■ current output: 4 ~ 20 mA or 0 ~ 10 Ma, accuracy: ± 1% of full scale, load 500 Ω;

■ buffered output: the original signal output of the sensor;

■ alarm: set at any point within the full range, LED alarm indication, relay

Switching value contact output, capacity dc28v / 2A or AC250V / 1A;

■ operation status: NOK yellow light is on, and the probe or extension cable is faulty; Red light on: alarm indication.

■ power supply: + 24VDC ± 10% or 220VAC ± 10%, 50Hz, power consumption less than 6W.
