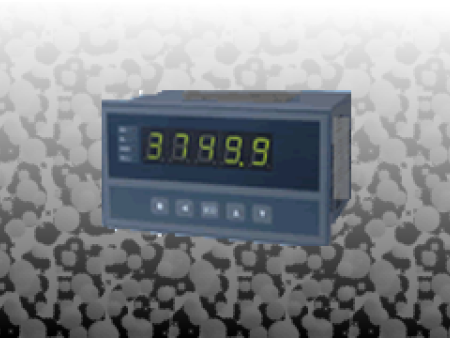

Yd800 / yd101 series intelligent digital controller

Yd800 / yd101 series intelligent digital controller

Main technical parameters

·High precision linear correction of nonlinear input signal

·The input signal type of the instrument can be changed freely by changing the internal parameters of the instrument through the buttons on the instrument surface, which improves the versatility of the instrument

·The serial communication interface communicates with a variety of serial input / output devices to form a control system

·High brightness LED digital / light column display makes the display clearer

·It has a variety of overall dimensions and is suitable for various measurement and control occasions

·Output a set of 24V / 50mA DC power supply to facilitate the use of the transmitter

·Input signal: thermocouple B, s, K, e, J, t, wre

Thermal resistance pt100.1, PT100, cu50, cu100

Remote pressure resistance 30 ~ 400 Ω

Current 0 ~ 10mA, 4 ~ 20mA, 0 ~ 20mA

Voltage: 0 ~ 5V, 1 ~ 5V, MV

·Output signal: relay alarm output AC220V / 1A or DC24V / 3A

Transmission output dc0 ~ 10mA DC4 ~ 20mA

DC0～5V DC1～5V

·Model Description: yd101b (intelligent light column display controller, opening 76 × 152 (vertical)

Yd800a (intelligent digital reality controller, opening 152) × 76. Horizontal type)
